Key
Highlights
- Battery
- 105 Ah
- Nominal voltage
- 51 V
- Technology
- LiFePO4
- Warranty
- 3 years or 1200 cycles, whichever is earlier
- Model
- TK LiEV-51105 (Phase-II)
Batteries · 3-Wheeler & E-Rickshaw Batteries

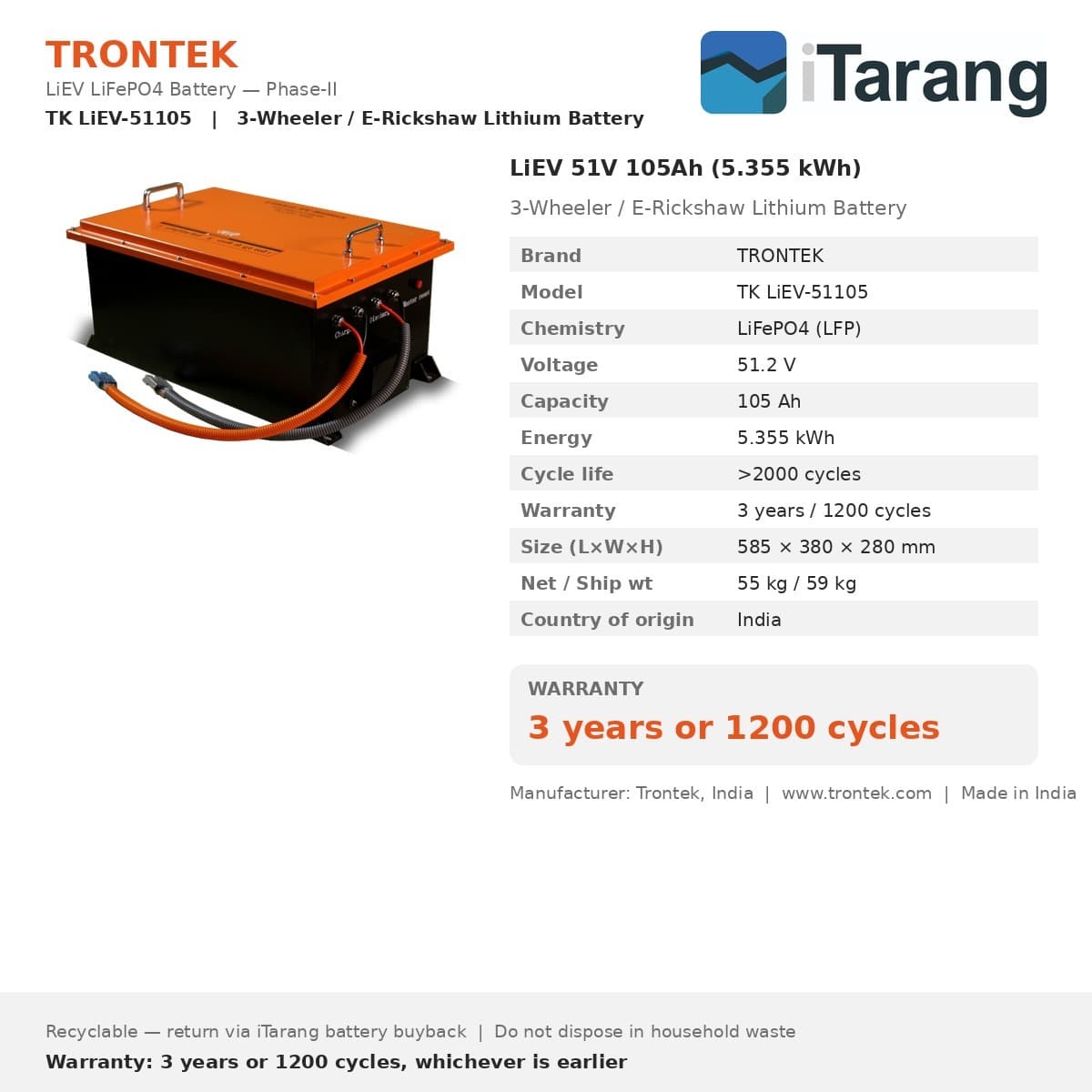

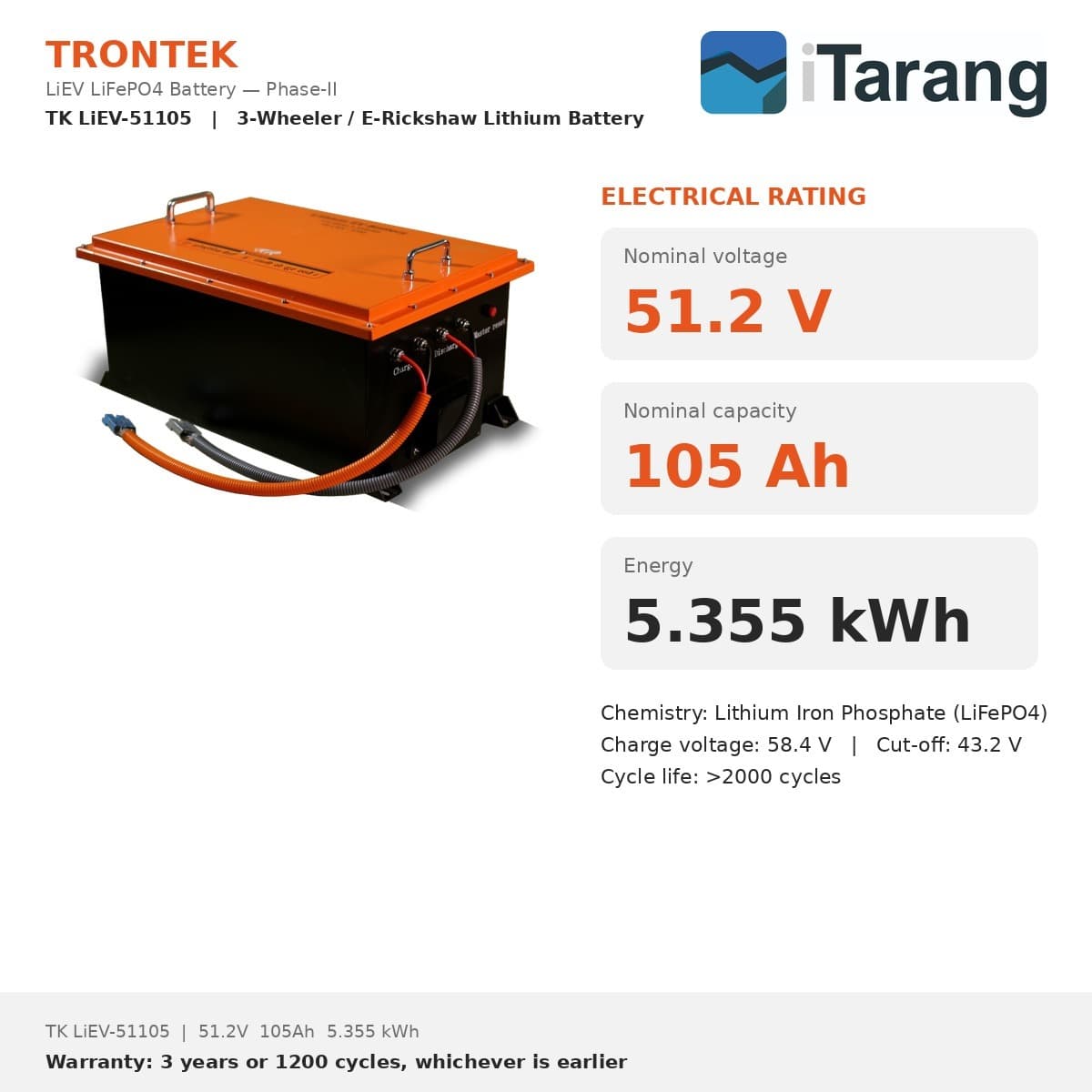

Trontek LiEV LiFePO4 EV Battery 51V 105Ah (5.355 kWh) Phase-II
Lithium Iron Phosphate (LiFePO4) EV battery pack
Inclusive of all taxes
Check delivery
About the product
- Attractive cycle life — 2000 cycles at 0.5C, 25°C
- Extended safety performance and double safety protection
- Wide operating temperature range; unrivalled high-temperature performance
- Green energy without metal contaminant
- High capacity, steady output voltage, low self-discharge
- Withstands very high levels of vibration and shock
- Intelligent BMS with independent cell balancing
Product Specifications
iTarang assured — certified installation and a documented warranty on every product.
- Net quantity
- 1 Count
Electrical characteristics
- Model
- TK LiEV-51105 (Phase-II)
- Nominal voltage
- 51 V
- Nominal capacity
- 105 Ah
- Battery pack energy
- 5.36 kWh (5355 Wh)
- Impedance (max. at 1000 Hz)
- ≤ 20 mΩ
- Expected cycle life
- 2000 cycles at 0.5C, 25°C, within operating range
Operation conditions
- Charge method
- Constant Current / Constant Voltage (CC-CV)
- Max. charge voltage
- 58.4 V
- Standard charge current
- 16 A
- Max. charge current
- 50 A
- Continuous discharge current
- 25 A
- Peak instant discharge current
- 75 A
- Peak instant discharge time
- 5 s
- Discharge cut-off voltage
- 43.2 V
- Discharge temperature
- −20°C to 60°C
- Storage temperature
- 15°C to 35°C
Mechanical characteristics
- Height
- 280 ±2 mm
- Width
- 380 ±2 mm
- Length
- 585 ±2 mm
- Dimensions (L × W × H)
- 585 × 380 × 280 mm (±2 mm)
- Net weight
- ~55 kg
- Shipping weight
- ~59.00 kg (net + 4 kg packaging)
BMS / PCM protection functions
- Over charge detection voltage
- 3.7 ±0.025 V
- Over charge release voltage
- 3.6 ±0.025 V
- Maximum charge voltage
- 3.7 ±0.05 V
- Standard charge current
- ≤ 16 A
- Over discharge detection voltage
- 2.7 ±0.025 V
- Over discharge detection delay time
- 0.5 – 1.5 s
- Over discharge release voltage
- 2.6 ±0.025 V
- Over current detection current
- 121 ±30 A
- Over current detection delay time
- 200 ms
- Over current release condition
- Cut load
- Maximum continuous current
- ≤ 96 A
- Short circuit detection condition
- Exterior short circuit (333 A)
- Short circuit detection delay time
- 200 µs
- Short circuit release condition
- Cut short circuit
Safety characteristics (as tested)
- Over-charge / over-discharge
- Withstands both — no fire, no explosion, continues to work
- Short circuit
- Withstands short circuit — no fire, no explosion
- Nail puncture
- Withstands nail penetration — no fire, no explosion
- Thermal shock
- Withstands thermal shock — no fire, no explosion
Product details
- Brand
- TRONTEK® (LiEV / Lithium Ferro series)
- Category
- 3-Wheeler / E-Rickshaw Lithium Battery / EV Battery
- Battery cell composition
- Lithium Iron Phosphate (LiFePO4 / LFP)
- Number of batteries
- 1 × battery pack
- Recommended uses
- Electric 3-wheelers / e-rickshaws and e-loaders running on a 48V system; OEM fitment or lead-acid replacement with compatible controller and Trontek charger
- Compatibility
- 48VV EV drivetrain with 58.4V charging profile
- Connector
- Output cable connector (charge + motor power leads)
- Enclosure
- Powder-coated metal enclosure with orange top cover, dual carry handles and output cable glands
- Colour
- Black with orange top
- Country of origin
- India
- Warranty
- 3 years or 1200 cycles, whichever is earlier
- HSN code
- 8507 60 00 (lithium-ion accumulators)
- GST
- 18% (verify current rate)
Ratings & Reviews
No reviews yet
Product Description
The Trontek TK LiEV-51105 (Phase-II) is a 51V 105Ah (5.36 kWh) lithium iron phosphate traction battery built for electric 3-wheelers (e-rickshaws and e-loaders). LFP chemistry gives the safest lithium option on the road — no thermal runaway, no fire on puncture or short — with 2000+ cycle life and steady output voltage across the full discharge. The pack is optimised by its battery management system (BMS), which monitors every cell to protect against over-charge, over-discharge, over-current and short circuit, and balances cells independently for safe and accurate operation. Trontek is an established Indian battery manufacturer with 1 GWh production capacity and in-house R&D and testing.
Frequently asked Questions9
- Q: Which electric 3-wheelers (e-rickshaws and e-loaders) is this battery compatible with?
- A: Any 48VV-system e-rickshaw whose controller accepts a 51V nominal LFP pack with a 58.4V charge voltage and 43.2V cut-off. Confirm connector type (Output cable connector (charge + motor power leads)) and charger rating with iTarang before purchase; controller and charger must match.
- Q: What range will I get?
- A: The pack stores 5.36 kWh. A typical e-rickshaw consumes 45–65 Wh/km, so expect roughly 82–119 km per full charge depending on passenger load, speed, terrain and motor rating.
- Q: How long does it take to charge?
- A: At the standard charge current (16 A) a full charge from cut-off takes about 6.5–7 (16 A) / 2–2.5 (50 A fast) hours. Use only a Trontek-approved LFP charger with a 58.4V CC-CV profile; a lead-acid charger will damage the pack.
- Q: Is LFP safer than the NMC batteries in the news for fires?
- A: Yes. LFP has a far higher thermal-runaway threshold and does not release oxygen when abused. This pack has been tested for over-charge, short circuit, nail puncture and thermal shock with no fire and no explosion, and the BMS cuts load on over-current, over-discharge and short circuit.
- Q: How many years will the battery last?
- A: Rated for 2000 cycles at 0.5C and 25°C. At one full charge per day that is roughly 5–6 years of daily use before capacity drops to end-of-life, versus about 1–1.5 years for lead-acid EV batteries.
- Q: Can I use it in hot Indian summers and in the rain?
- A: Discharge is rated −20°C to 60°C; the BMS throttles or cuts charging outside safe limits. Powder-coated metal enclosure with orange top cover, dual carry handles and output cable glands — mount inside the vehicle's battery compartment and keep the connector dry. Store between 15°C and 35°C.
- Q: Does it need maintenance?
- A: No. No water topping, no acid, no terminal corrosion. Keep the connector clean and avoid leaving the pack at 0% for long periods.
- Q: What is the warranty?
- A: Warranty: 3 years or 1200 cycles, whichever is earlier. Warranty is void if a non-approved charger is used or the pack is opened.
- Q: What happens at end of life?
- A: The pack is fully recyclable. Return it through iTarang's battery buyback / take-back programme under the Battery Waste Management Rules, 2022. Never dispose of it in household waste.
Warranty, installation & service
Installation is not included in this product’s price. If you would like a certified iTarang technician to install and commission it, our support team can arrange a visit from the network covering your pincode.
This product carries a warranty of 3 years or 1200 cycles, whichever is earlier from the date of installation. The written terms ship with the product and are also available from support. Keep your invoice and the serial number on the unit.
Service requests are raised in the Owner Centre. You receive a reference number and a technician is assigned from the network covering your pincode.
Manufacturer
- Manufacturer
- Trontek
- Country of Origin
- India
- Contact
- info@trontek.com
- Website
- www.trontek.com
Seller & marketer
- Seller Name
- iTarang Network Private Limited
- Seller Address
- Unitech Business Zone, Sector 50, Gurugram, Haryana
- GSTIN
- 06AALFI7813E1ZE
- Customer Care
- 9971027907
- Grievance Officer
- Chirag Garg — 9971027907
Need more than 10 items?
Get dedicated support, project pricing and one point of contact for delivery and installation.
Enquire NowCharging and discharge
Charging
At the standard charge current (16 A) a full charge from cut-off takes about 6.5–7 (16 A) / 2–2.5 (50 A fast) hours. Use only a Trontek-approved LFP charger with a 58.4V CC-CV profile; a lead-acid charger will damage the pack.
- Charge method
- Constant Current / Constant Voltage (CC-CV)
- Max. charge voltage
- 58.4 V
- Standard charge current
- 16 A
- Max. charge current
- 50 A
Discharge
- Continuous discharge current
- 25 A
- Peak instant discharge current
- 75 A
- Peak instant discharge time
- 5 s
- Discharge cut-off voltage
- 43.2 V
- Discharge temperature
- −20°C to 60°C
Compatibility and care
What it works with
- 48VV EV drivetrain with 58.4V charging profile
- Connector: Output cable connector (charge + motor power leads)
- Electric 3-wheelers / e-rickshaws and e-loaders running on a 48V system; OEM fitment or lead-acid replacement with compatible controller and Trontek charger
Looking after it
- No water topping, no acid, no terminal corrosion.
- Powder-coated metal enclosure with orange top cover, dual carry handles and output cable glands — mount inside the vehicle's battery compartment and keep the connector dry.
- Store between 15°C and 35°C.
- Keep the connector clean and avoid leaving the pack at 0% for long periods.
