Key
Highlights
- Battery
- 45 Ah
- Nominal voltage
- 51 V
- Technology
- LiFePO4
- Model
- TK-LiFe-5145
- Battery pack energy
- 2.29 kWh (2295 Wh)
Batteries · 2-Wheeler EV Batteries

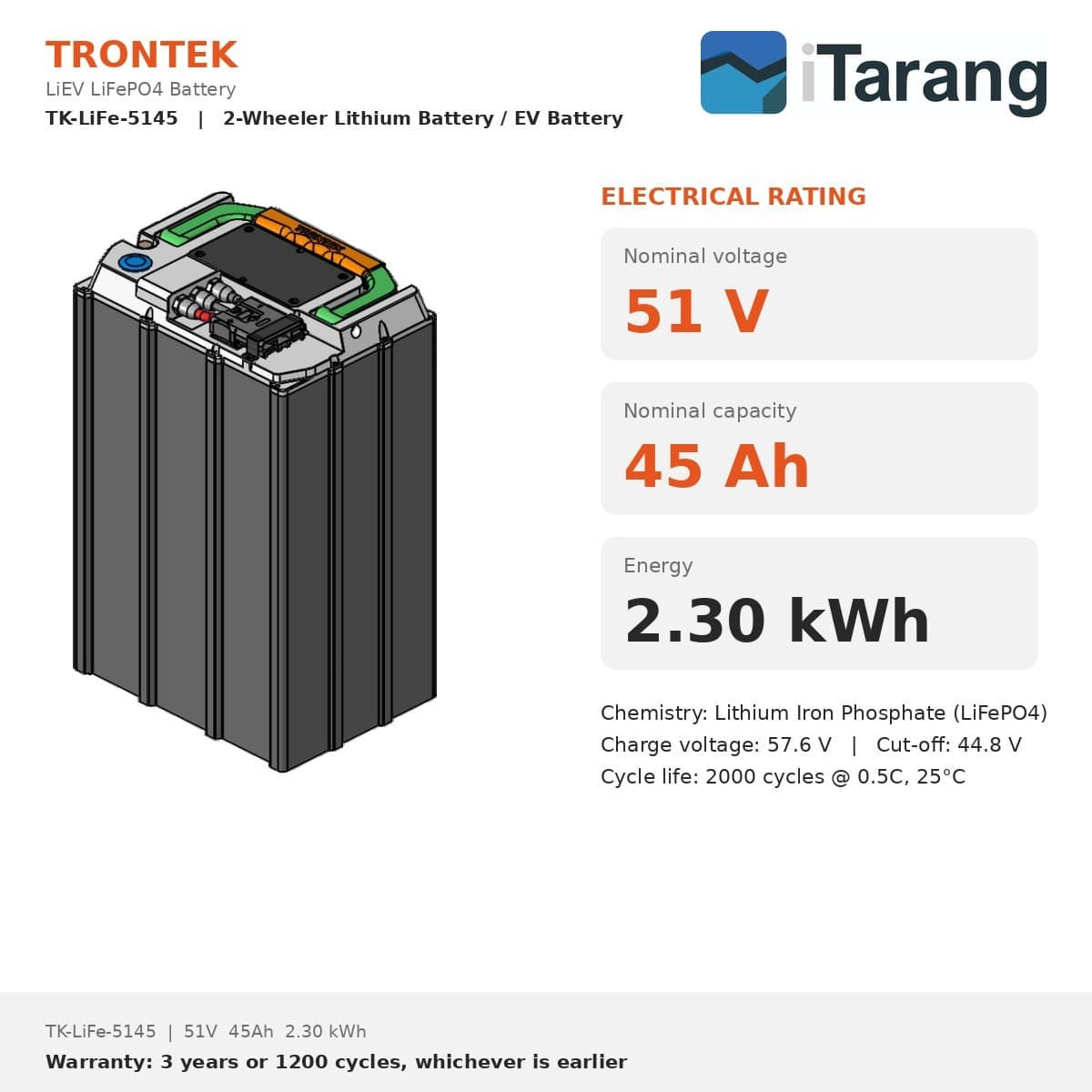

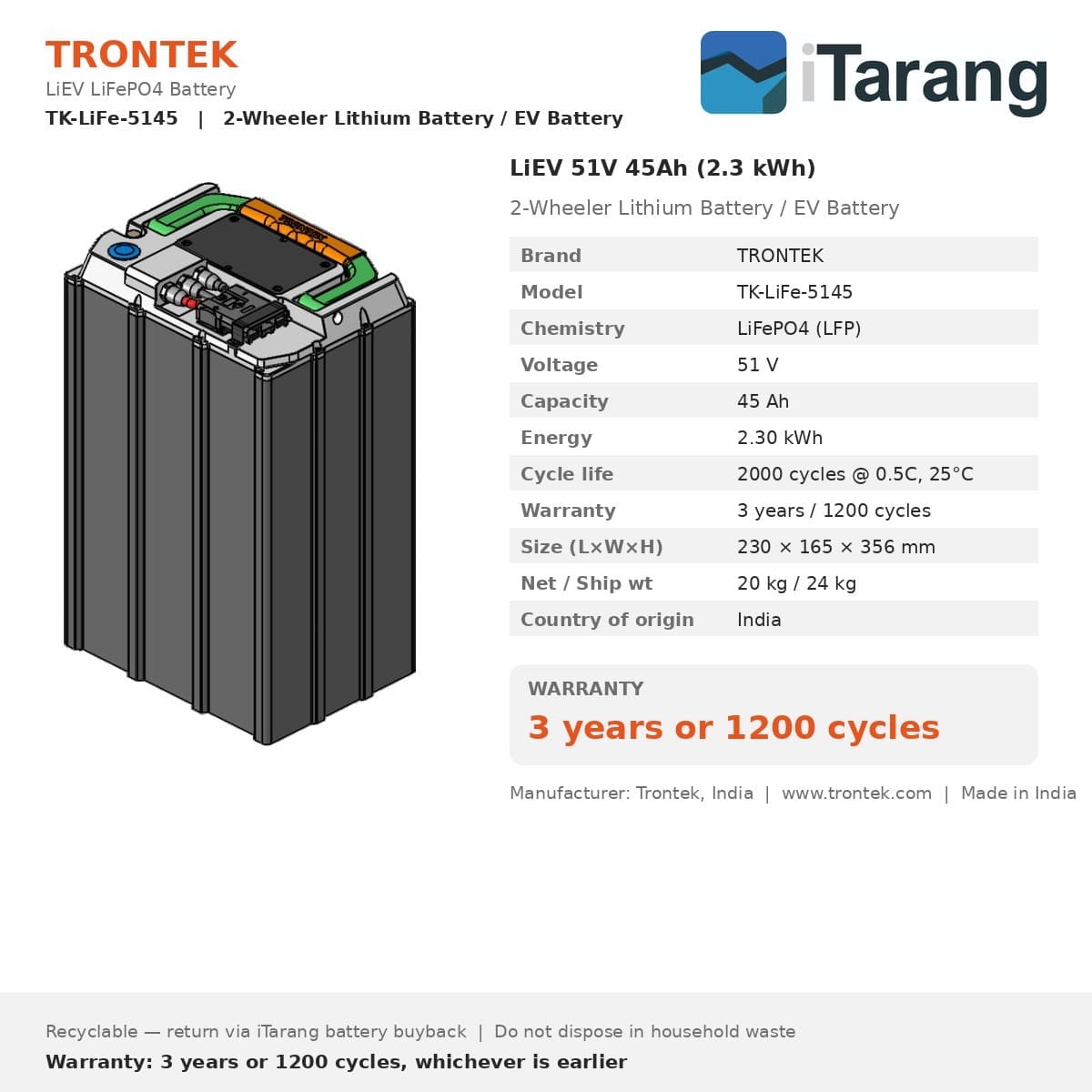

Trontek LiEV LiFePO4 EV Battery 51V 45Ah (2.3 kWh)
Lithium Iron Phosphate (LiFePO4) EV battery pack
Inclusive of all taxes
Check delivery
About the product
- Attractive cycle life — 2000 cycles at 0.5C, 25°C
- Extended safety performance and double safety protection
- Wide operating temperature range; unrivalled high-temperature performance
- Green energy without metal contaminant
- High capacity, steady output voltage, low self-discharge
- Withstands very high levels of vibration and shock
- Intelligent BMS with independent cell balancing
Product Specifications
iTarang assured — certified installation and a documented warranty on every product.
- Net quantity
- 1 Count
Electrical characteristics
- Model
- TK-LiFe-5145
- Nominal voltage
- 51 V
- Nominal capacity
- 45 Ah
- Battery pack energy
- 2.29 kWh (2295 Wh)
- Impedance (max. at 1000 Hz)
- ≤ 15 mΩ
- Expected cycle life
- 2000 cycles at 0.5C, 25°C, within operating range
Operation conditions
- Charge method
- Constant Current / Constant Voltage (CC-CV)
- Max. charge voltage
- 57.6 V
- Standard charge current
- 0.3C (≈13.5 A)
- Max. charge current
- 0.5C (≈22.5 A)
- Continuous discharge current
- 45 A (max. 1.5C)
- Peak instant discharge current
- 90 A
- Peak instant discharge time
- 5 s
- Discharge cut-off voltage
- 44.8 V
- Discharge temperature
- −20°C to 60°C
- Storage temperature
- 15°C to 35°C
Mechanical characteristics
- Height
- 356 ±2 mm
- Width
- 165 ±2 mm
- Length
- 230 ±2 mm
- Dimensions (L × W × H)
- 230 × 165 × 356 mm (±2 mm)
- Net weight
- ~20 kg
- Shipping weight
- ~24.00 kg (net + 4 kg packaging)
BMS / PCM protection functions
- Over charge detection voltage
- 3.6 ±0.025 V
- Over charge release voltage
- 3.5 ±0.025 V
- Maximum charge voltage
- 3.6 ±0.05 V
- Standard charge current
- ≤ 45 A
- Over discharge detection voltage
- 2.8 ±0.025 V
- Over discharge detection delay time
- ≤ 115 – 173 ms
- Over discharge release voltage
- 2.9 ±0.01 V
- Over current detection current
- 121 ±30 A
- Over current detection delay time
- 32 ±16 ms
- Over current release condition
- Cut load
- Maximum continuous current
- ≤ 90 A
- Short circuit detection condition
- Exterior short circuit (850 A)
- Short circuit detection delay time
- 200 µs
- Short circuit release condition
- Cut short circuit
Safety characteristics (as tested)
- Over-charge / over-discharge
- Withstands both — no fire, no explosion, continues to work
- Short circuit
- Withstands short circuit — no fire, no explosion
- Nail puncture
- Withstands nail penetration — no fire, no explosion
- Thermal shock
- Withstands thermal shock — no fire, no explosion
Product details
- Brand
- TRONTEK® (LiEV / Lithium Ferro series)
- Category
- 2-Wheeler Lithium Battery / EV Battery
- Battery cell composition
- Lithium Iron Phosphate (LiFePO4 / LFP)
- Number of batteries
- 1 × battery pack
- Recommended uses
- Electric 2-wheelers (scooters / motorcycles) and light EVs running on a 48VV system; OEM replacement or retrofit with compatible controller and charger
- Compatibility
- 48VV EV drivetrain with 57.6V charging profile
- Connector
- Top-mounted connector with buzzer and breather
- Enclosure
- Extruded aluminium enclosure with handle, buzzer and breather valve
- Colour
- Grey/black enclosure
- Country of origin
- India
- HSN code
- 8507 60 00 (lithium-ion accumulators)
- GST
- 18% (verify current rate)
Ratings & Reviews
No reviews yet
Product Description
The Trontek TK-LiFe-5145 is a 51V 45Ah (2.29 kWh) lithium iron phosphate traction battery built for electric 2-wheelers. LFP chemistry gives the safest lithium option on the road — no thermal runaway, no fire on puncture or short — with 2000+ cycle life and steady output voltage across the full discharge. The pack is optimised by its battery management system (BMS), which monitors every cell to protect against over-charge, over-discharge, over-current and short circuit, and balances cells independently for safe and accurate operation. Trontek is an established Indian battery manufacturer with 1 GWh production capacity and in-house R&D and testing.
Frequently asked Questions8
- Q: Which electric 2-wheelers is this battery compatible with?
- A: Any 48VV-system electric scooter or motorcycle whose controller accepts a 51V nominal LFP pack with a 57.6V charge voltage and 44.8V cut-off. Confirm connector type (Top-mounted connector with buzzer and breather) and charger rating with iTarang before purchase; controller and charger must match.
- Q: What range will I get?
- A: The pack stores 2.29 kWh. A typical e-scooter consumes 25–35 Wh/km, so expect roughly 66–92 km per full charge depending on rider weight, speed, terrain and motor rating.
- Q: How long does it take to charge?
- A: At the standard charge current (0.3C (≈13.5 A)) a full charge from cut-off takes about 3.5–4 hours. Use only a Trontek-approved LFP charger with a 57.6V CC-CV profile; a lead-acid charger will damage the pack.
- Q: Is LFP safer than the NMC batteries in the news for fires?
- A: Yes. LFP has a far higher thermal-runaway threshold and does not release oxygen when abused. This pack has been tested for over-charge, short circuit, nail puncture and thermal shock with no fire and no explosion, and the BMS cuts load on over-current, over-discharge and short circuit.
- Q: How many years will the battery last?
- A: Rated for 2000 cycles at 0.5C and 25°C. At one full charge per day that is roughly 5–6 years of daily use before capacity drops to end-of-life, versus about 1–1.5 years for lead-acid EV batteries.
- Q: Can I use it in hot Indian summers and in the rain?
- A: Discharge is rated −20°C to 60°C; the BMS throttles or cuts charging outside safe limits. Extruded aluminium enclosure with handle, buzzer and breather valve — mount inside the vehicle's battery compartment and keep the connector dry. Store between 15°C and 35°C.
- Q: Does it need maintenance?
- A: No. No water topping, no acid, no terminal corrosion. Keep the connector clean and avoid leaving the pack at 0% for long periods.
- Q: What happens at end of life?
- A: The pack is fully recyclable. Return it through iTarang's battery buyback / take-back programme under the Battery Waste Management Rules, 2022. Never dispose of it in household waste.
Warranty, installation & service
Installation is not included in this product’s price. If you would like a certified iTarang technician to install and commission it, our support team can arrange a visit from the network covering your pincode.
Service requests are raised in the Owner Centre. You receive a reference number and a technician is assigned from the network covering your pincode.
Manufacturer
- Manufacturer
- Trontek
- Country of Origin
- India
- Contact
- info@trontek.com
- Website
- www.trontek.com
Seller & marketer
- Seller Name
- iTarang Network Private Limited
- Seller Address
- Unitech Business Zone, Sector 50, Gurugram, Haryana
- GSTIN
- 06AALFI7813E1ZE
- Customer Care
- 9971027907
- Grievance Officer
- Chirag Garg — 9971027907
Need more than 10 items?
Get dedicated support, project pricing and one point of contact for delivery and installation.
Enquire NowCharging and discharge
Charging
At the standard charge current (0.3C (≈13.5 A)) a full charge from cut-off takes about 3.5–4 hours. Use only a Trontek-approved LFP charger with a 57.6V CC-CV profile; a lead-acid charger will damage the pack.
- Charge method
- Constant Current / Constant Voltage (CC-CV)
- Max. charge voltage
- 57.6 V
- Standard charge current
- 0.3C (≈13.5 A)
- Max. charge current
- 0.5C (≈22.5 A)
Discharge
- Continuous discharge current
- 45 A (max. 1.5C)
- Peak instant discharge current
- 90 A
- Peak instant discharge time
- 5 s
- Discharge cut-off voltage
- 44.8 V
- Discharge temperature
- −20°C to 60°C
Compatibility and care
What it works with
- 48VV EV drivetrain with 57.6V charging profile
- Connector: Top-mounted connector with buzzer and breather
- Electric 2-wheelers (scooters / motorcycles) and light EVs running on a 48VV system; OEM replacement or retrofit with compatible controller and charger
Looking after it
- No water topping, no acid, no terminal corrosion.
- Extruded aluminium enclosure with handle, buzzer and breather valve — mount inside the vehicle's battery compartment and keep the connector dry.
- Store between 15°C and 35°C.
- Keep the connector clean and avoid leaving the pack at 0% for long periods.
